Drop Down TV Lift: Up to 75" TVs

Name: Drop Down TV Lift: Up to 75" TVs
Brand: Progressive Automations
SKU: TY-05-40
Price: 740.0 CAD
Availability: InStock

TY-05-40

$740.00 CAD

Sale Sold out

Shop now and save up to 50%

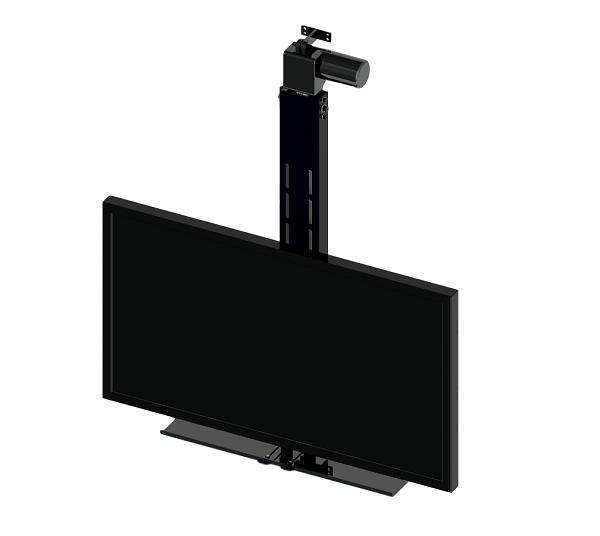

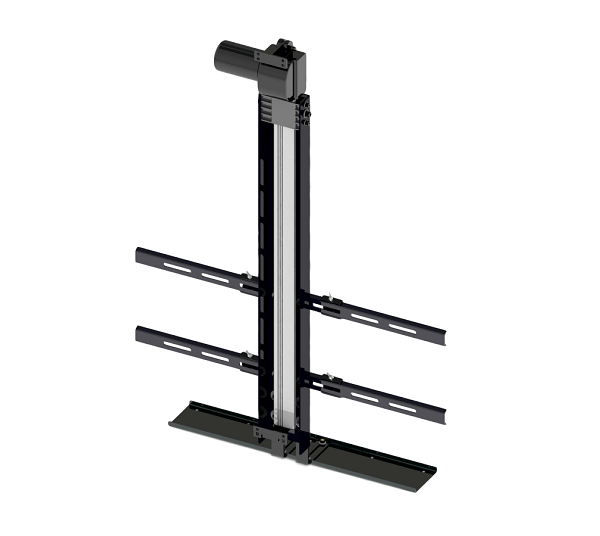

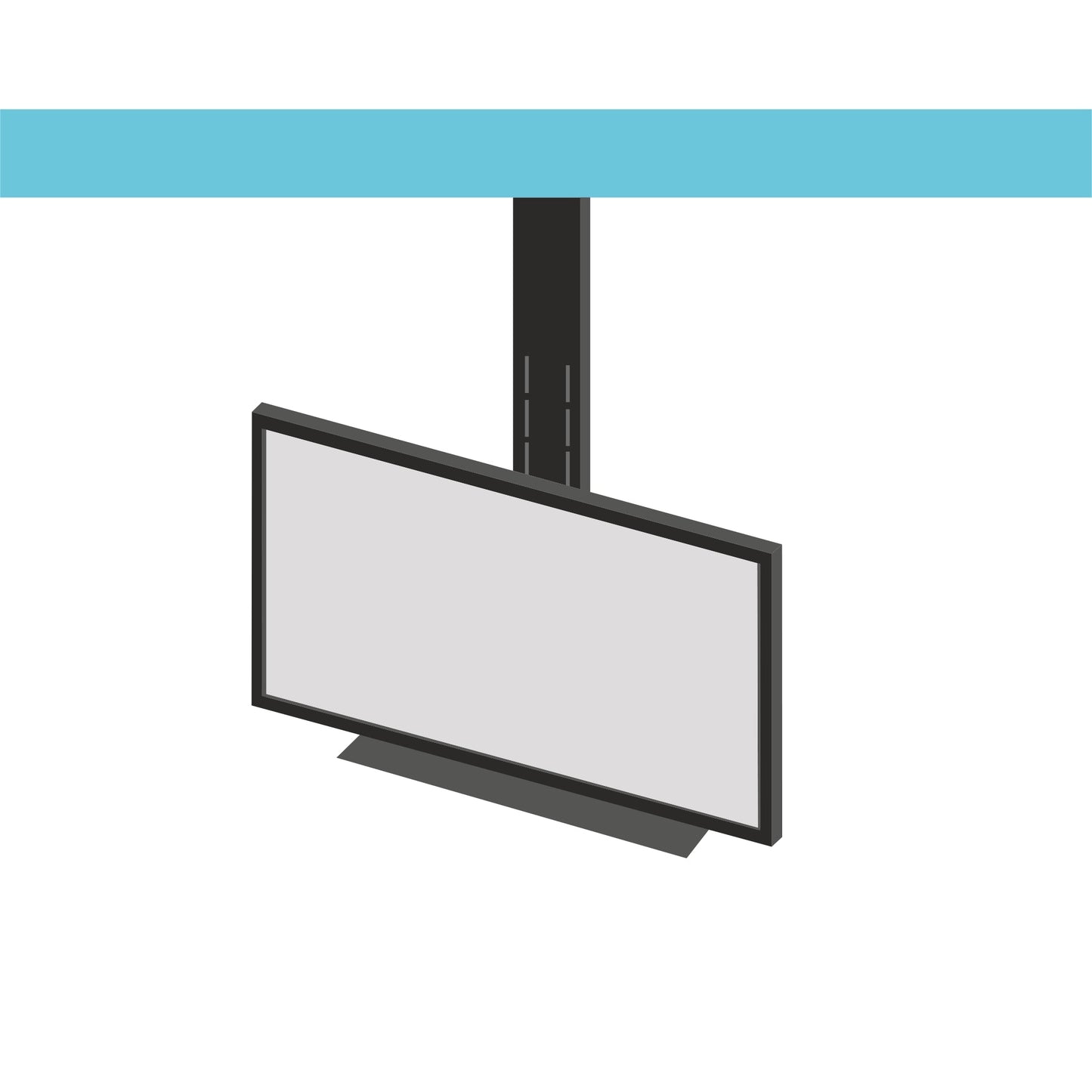

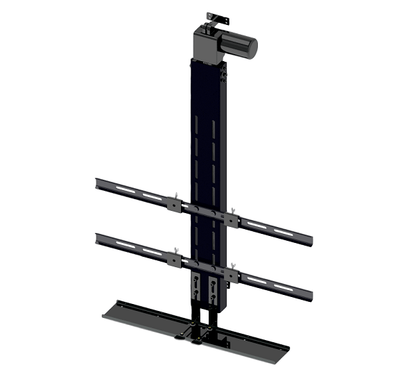

The TY-05-40 Drop Down TV lift easily installs to automate your home entertainment system. With the drop-down design, you can lower your television up to 75" down from the ceiling and raise it back to hide in plain sight when not in use. The TY-05 series was designed to be able to fit into tight spaces such as attics and is easily controlled via wired or wireless remote. The TY-05-40 has a travel distance of 40" and has a 110 lbs load rating.

For step-by-step installation instructions be sure to check out our TY-05 Series Datasheet.

Stroke (Movement) 40"
Minimum Height 52.5"
Maximum Height 92.5"
TV Size Compatibility 30" - 75"
VESA Compatibility Yes - Standard FDMI MIS-F
Input Voltage 110 - 220 VAC

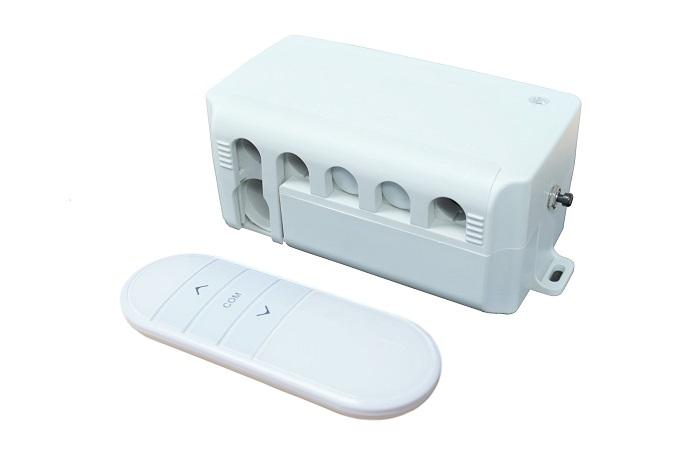

Control Options Wired & Wireless Remote
Wireless Remote Range Up to 120 ft
Wired Remote Cable Length 35"
Load Rating 110 lbs
Speed at No Load 1.54"/sec
Speed at Full Load 0.9"/sec
Overload Protection Fused
Operational Temperature -26ºC~+65ºC (-15ºF~150ºF)
Duty Cycle 10%
IP Rating IP20
Frame Material Aluminum with Steel Brackets
AC Cable Length 10 ft
Unit Weight 38.55 lbs
Warranty 18 Months

pdf manuals

TY-05-40 User Manual
