Description

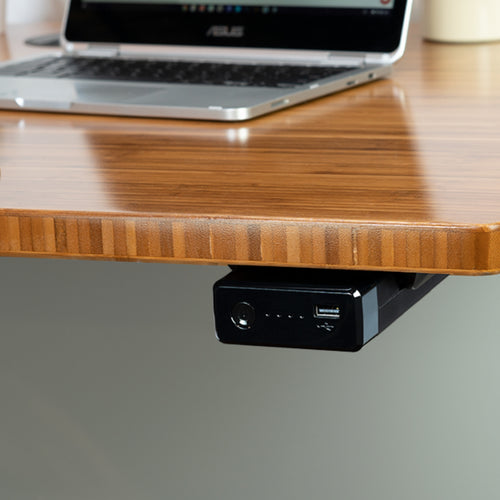

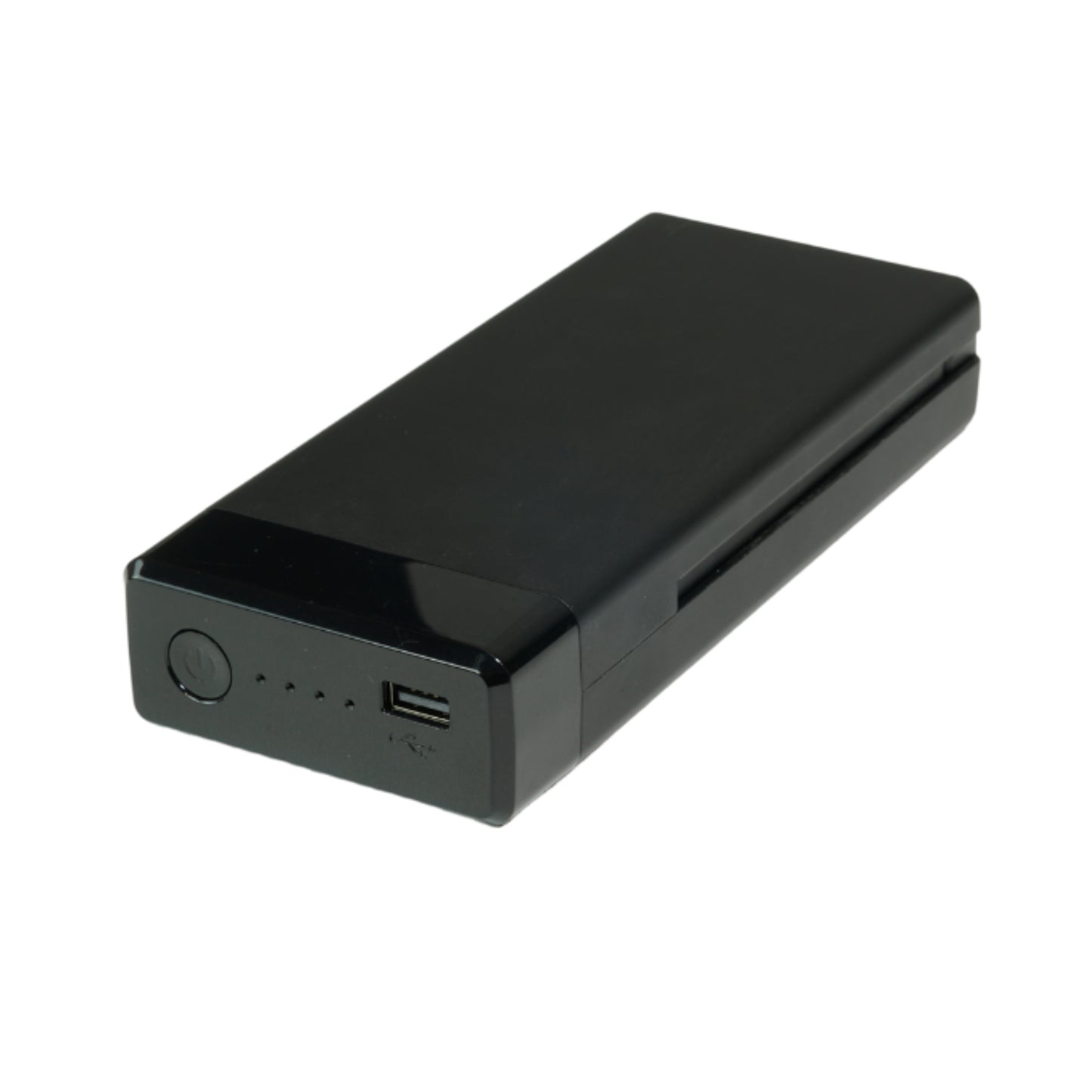

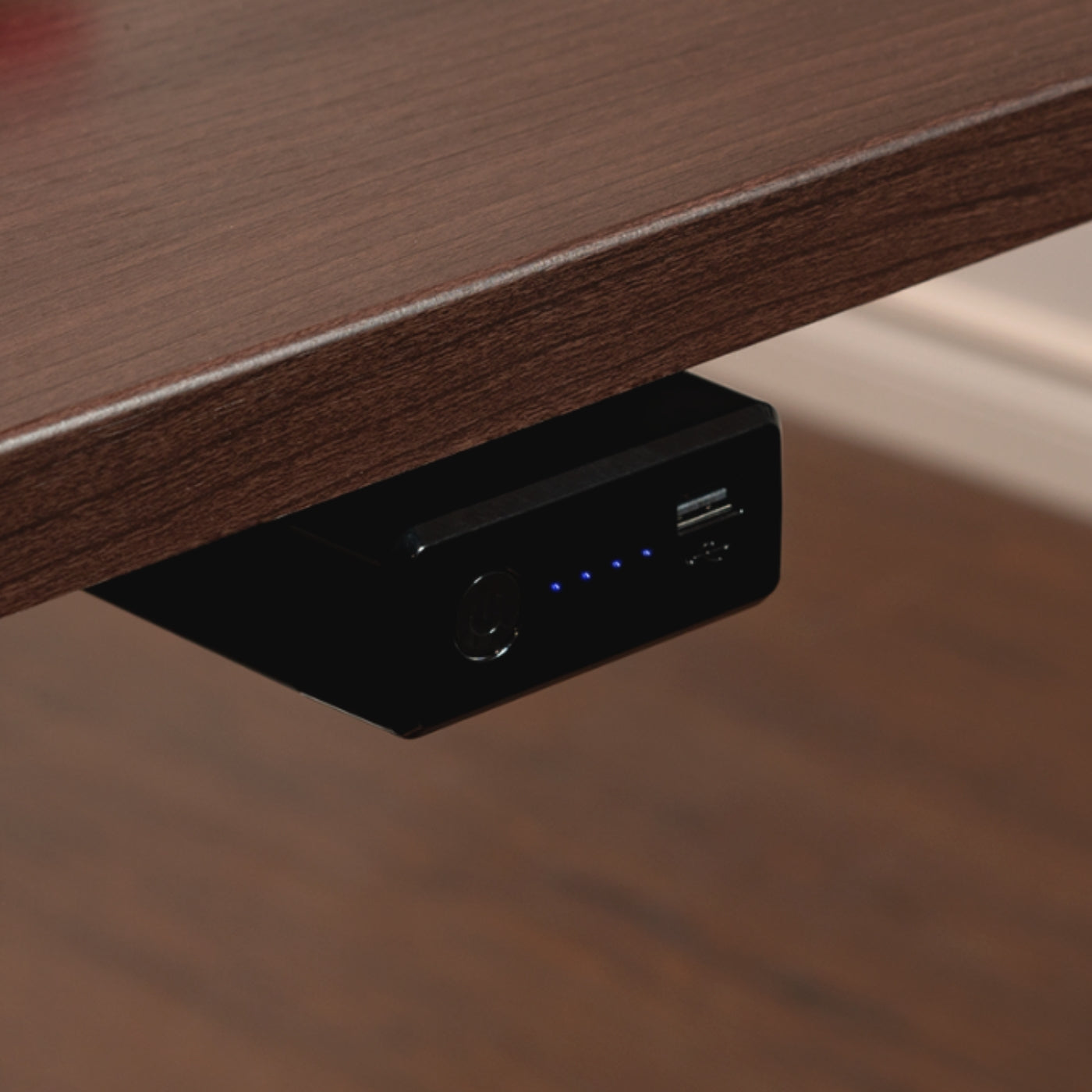

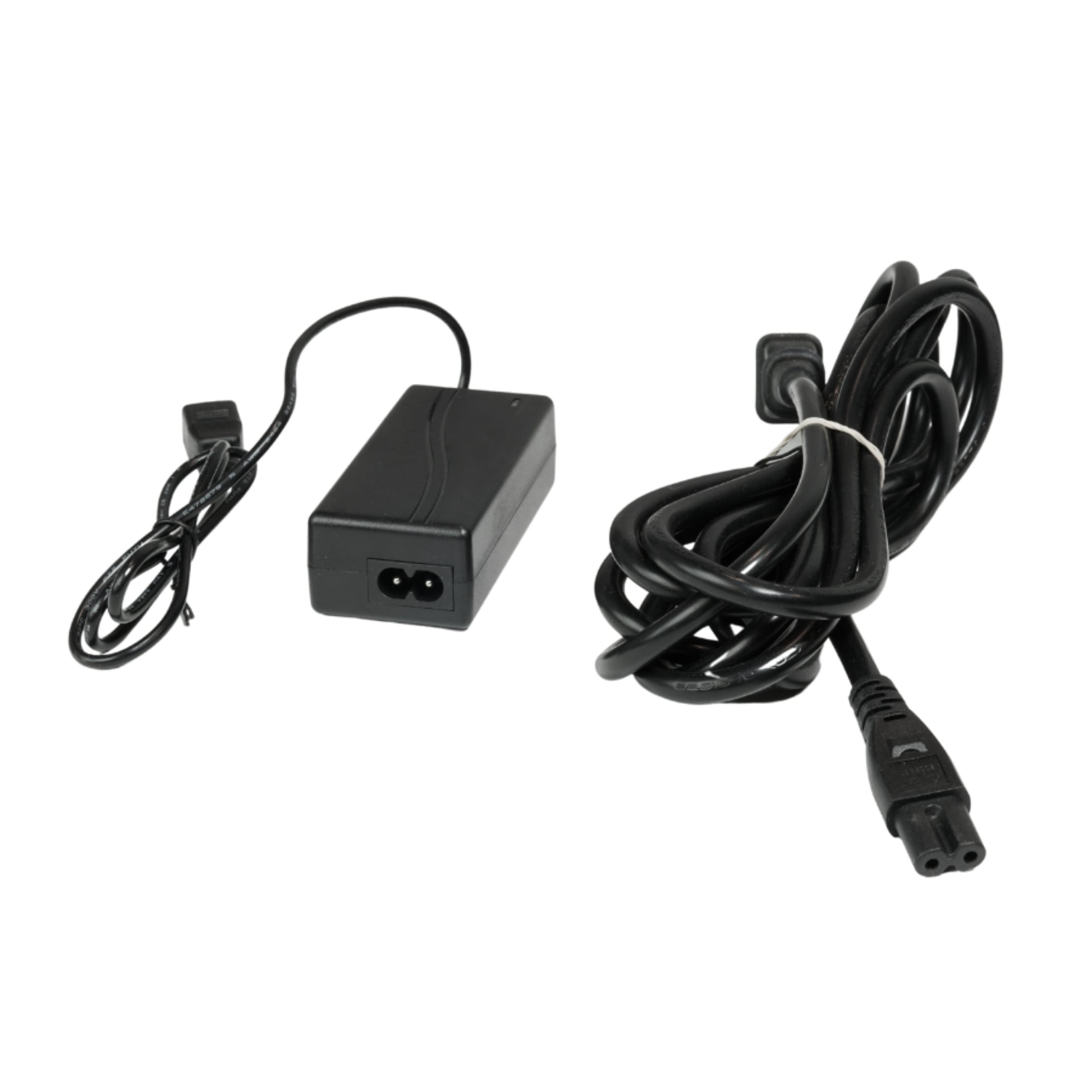

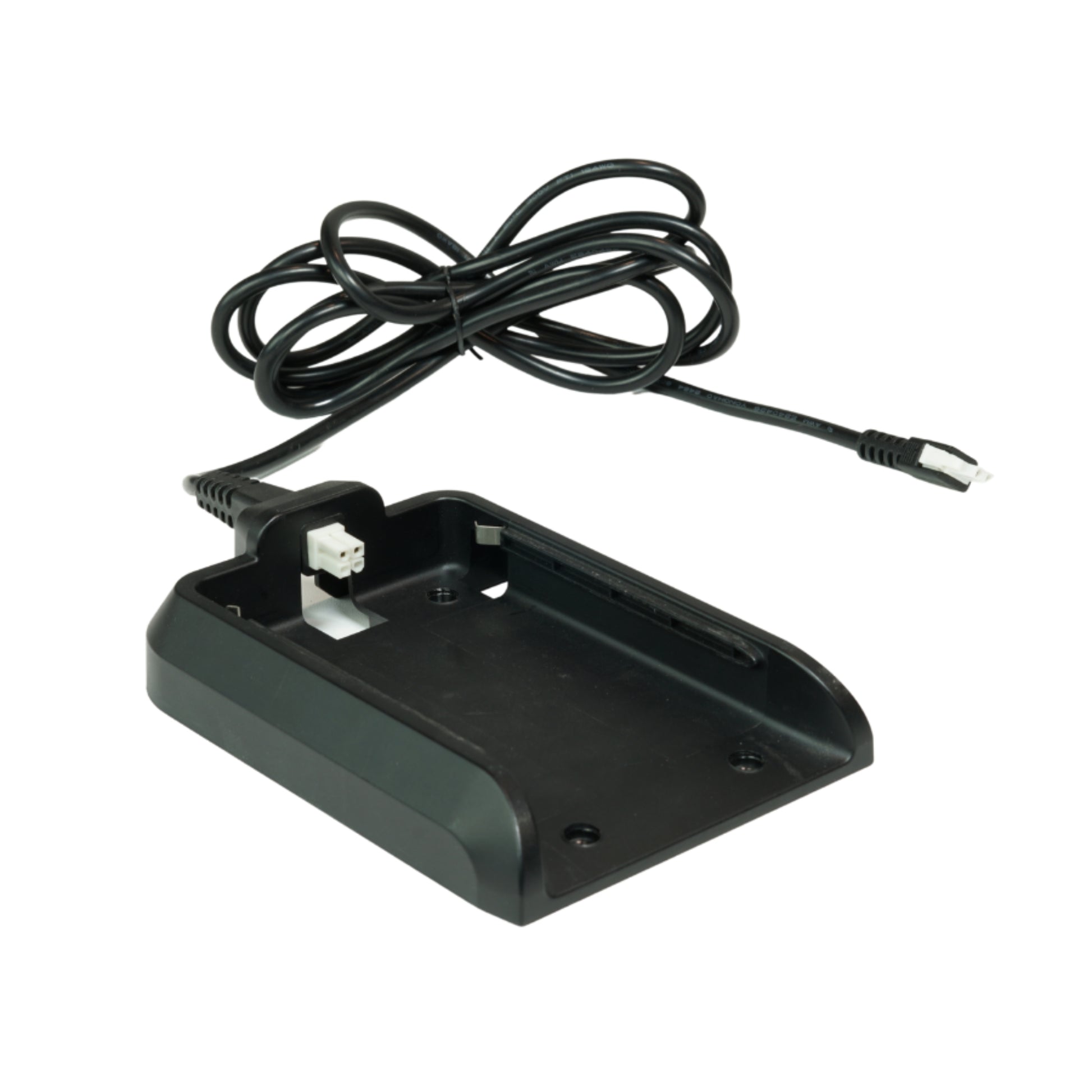

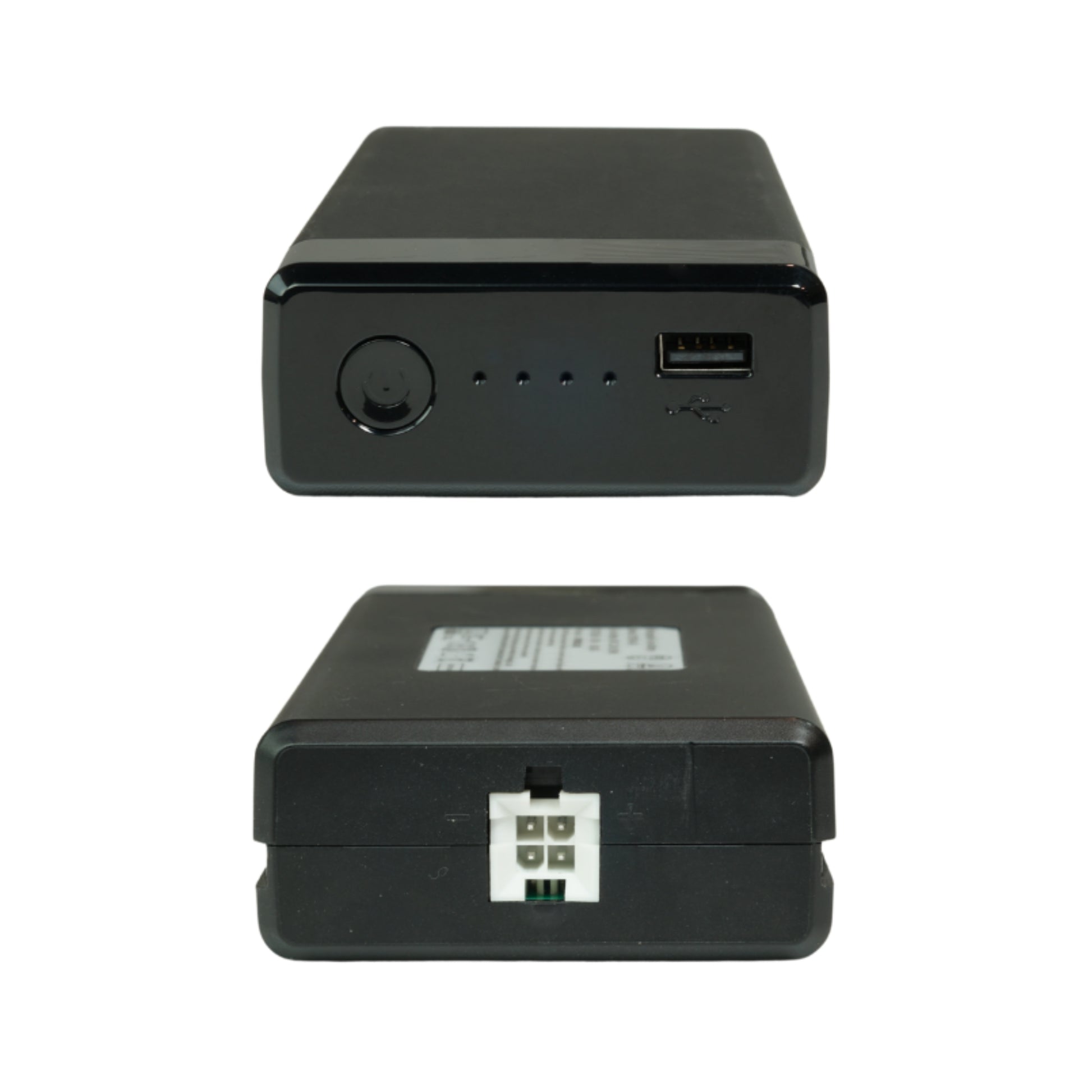

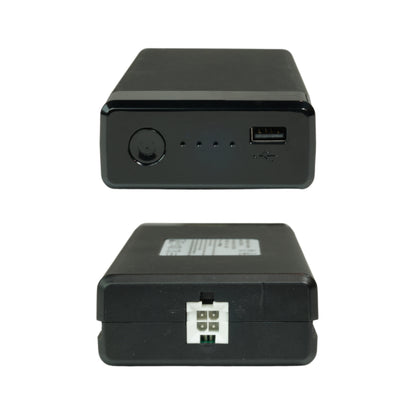

The PA-BT1-24-2200 is a great solution for supplying 24 VDC power to your desk, with an 8A maximum current draw guaranteeing its compatibility with all of our desk frames and lifting columns. Enjoy benefits such as adjusting your table lift height without the need to constantly remove the battery for charging, thanks to the 2.2Ah capacity. This battery comes in a set along with a dock, charger, AC power cable, and screws for mounting the dock.
Specifications
- Protection Class IP54
- Сertification IEC 62133, TUV, cUL, UN38.3
- Input Voltage 100 VAC ~ 240 VAC
- Current Input 0.5 A
- Output Voltage 24 VDC
- Output Current 8 A
- Capacity 2.2 Ah
- Features USB Charging Port, Overcharge Protection, Overdischarge Protection, Overcurrent Protection, Short Circuit Protection, Battery Life Indicator
- Duty Cycle 10% (2 min on, 18min off)
- Operating Temperature 5° to 40°
- Cable Length 59"
- Housing Color Black
- Unit Weight 2.70 lbs
Resources
pdf manuals
PA-BT1-24-2200 User Manual
